![]() | Introduced: September 14, 1992 Terminated: October 18, 1993 |
Logic Board
Processor: 68030
Processor Speed: 16 MHz
PMMU: Integrated
FPU: none
Bus Speed: 16 MHz
Data Path: 16-bit
ROM Size: 512K
Level 1 Cache: 0.5K
Level 2 Cache: none
Expansion Slots: 1 LC PDS
Battery: 3.6V Lithium

Memory
RAM Type: 30-pin SIMM
RAM Slots: 2
Min – Max RAM: 4 MB – 10 MB
Minimum RAM Speed: 100 ns
Install in groups of: 2
RAM Sizes: 1, 2, 4 MB
Onboard RAM: 4 MB
Note:
- When all SIMM slots are filled with 4 MB SIMMs, the lower 2 MB of RAM on the logic board cannot be addressed.

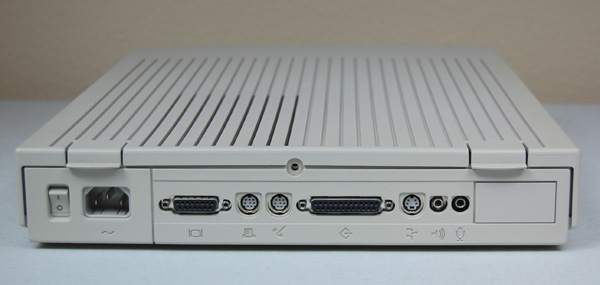

Ports
ADB: 1
USB: none
FireWire: none
Video: DB-15
Floppy: none
SCSI: DB-25
Geoports: none
Ethernet: none
Mic Type: Omni
Other ports: Printer, modem, speaker
Video
Standard VRAM: 256K (1 x 256K)
Maximum VRAM: 512K (1 x 512K)
Display Resolution:
- 512 x 384, 8-bit (1 x 256K), 16-bit (1 x 512K)
- 640 x 480, 4-bit (1 x 256K), 8-bit (1 x 512K)
Note:
- This system shipped with 512K of VRAM.
Storage
Standard CD-ROM: none
Internal Hard Drive: SCSI (80 – 120 MB)
Floppy Disk Drive: 1.44 MB auto
Operating System
Addressing Modes: 24-bit or 32-bit
Original OS: 7.0.1P
Original Enabler: none
AppleTalk Version: 54
Compatible MacOS:
7.0.1P
7.1P
7.1P1
7.1P2
7.1P3
7.1P5
7.1P6
7.5
7.5.1
7.5.3
7.5.5
7.6
7.6.1
Miscellaneous
Macintosh Counterpart: Macintosh LC II
Form Factor: LC
Dimensions (Inches): 2.9 H x 12.2 W x 15.3 D
Average Weight (lbs): 8.8
Gestalt ID: 37
Original Price: $1180 US
Comments
The educational version of the Performa 400 was the Macintosh LC II.
